Client Story
In this project the client required an Event-Driven ESB (Enterprise Service Bus) capable of handling thousands of real-time messages per second across fully isolated environments.
Because the data included sensitive and potentially PII-level information, they needed strict, granular access controls and end-to-end security, including encryption at-rest and in-transit.
They also demanded a platform with minimal manual upkeep, automated incident detection, and alerting robust enough to maintain strict SLAs. The system had to be highly scalable, fault-tolerant, auditable, and supported by compliant, isolated build and access workflows.
Solution used
- AWS MSK (Kafka) - based ESB connecting isolated AWS accounts via cross-account IAM roles.
- Terraform for infrastructure and granular per-topic IAM access control.
- Jira Service Desk + Automation for self-service access management.
- CloudTrail, S3, GuardDuty, Athena for centralized audit and security logging.
- Kafka-UI for topic inspection, message tracing, and debugging.
- CloudWatch, Prometheus, Grafana for monitoring and alerting (integrated with Jira Alerts) with SRE shifts to reach desired SLA level.
- GitLab CI pipelines with self-hosted runners for compliance and isolated execution.
- End-to-end encryption and AWS-managed services for scalability, resilience, and low maintenance.
- Glue schema registry for storing Avro schemas
Architecture Overview
Code Organization
The code is hosted on GitLab with GitLab CI pipelines. The main repo with infrastructure is written with terraform and protected with pre-commit (trivy, tfsec, tf-lint, etc), SonarQube to manage the code quality

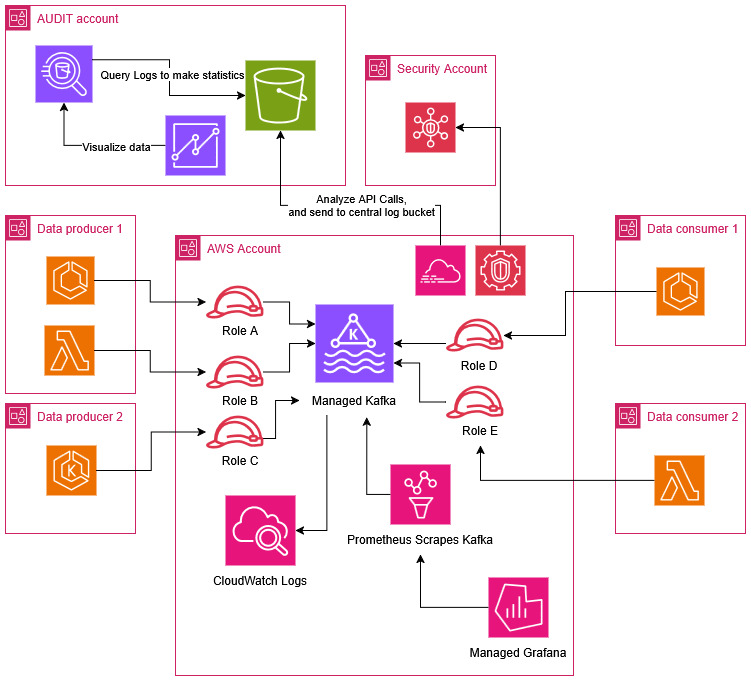

Infrastructure Chart
